Schluter®-KERDI-LINE-VARIO Variable length linear drain kit

Schluter®-KERDI-LINE-VARIO Variable length linear drain kit

$139.58 CAD
$139.58 CAD
Sale Sold out

Only 20 left in stock

Product Description :

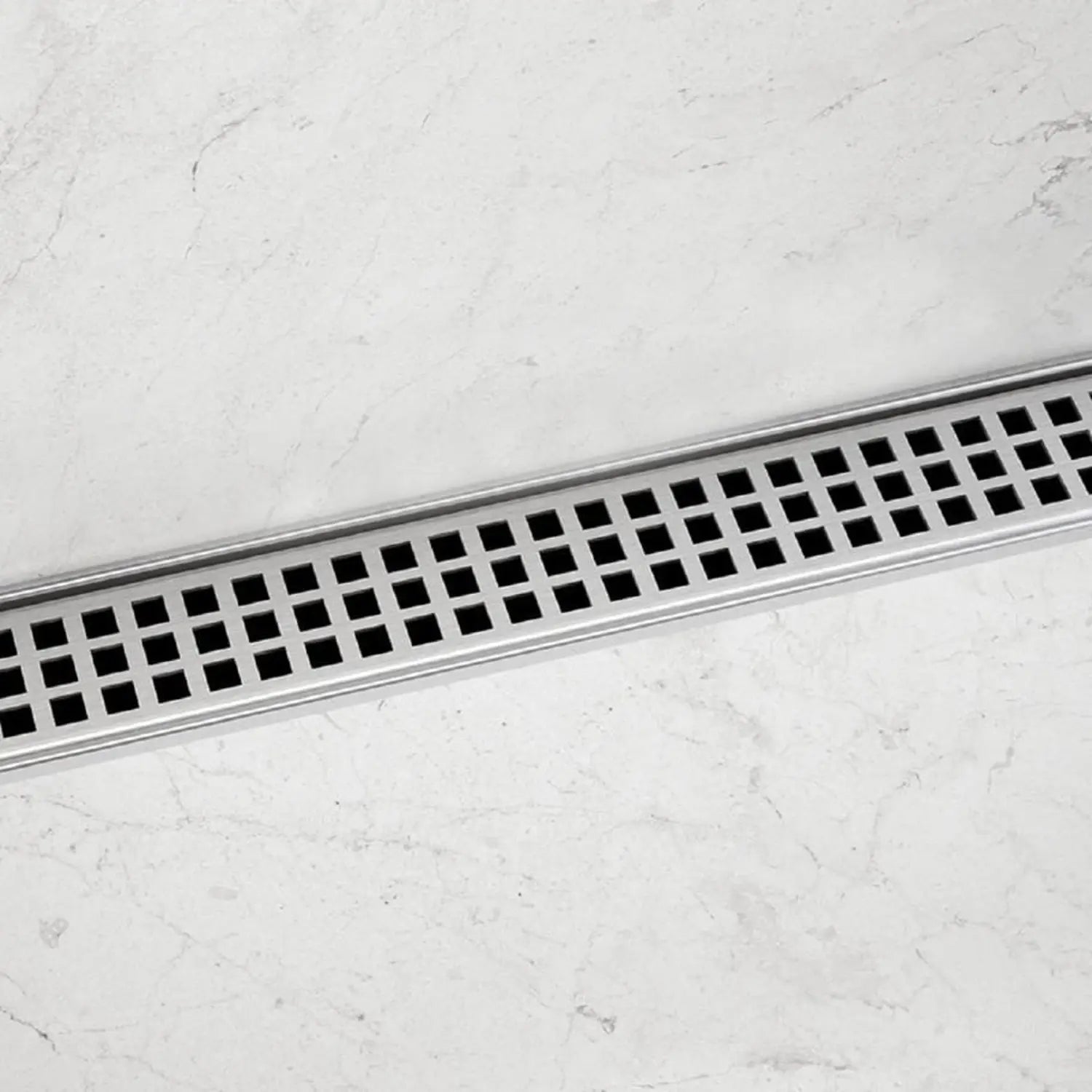

Schluter®-KERDI-LINE-VARIO is a variable length linear drain for tiled showers. The brushed stainless steel channel and grate assembly can be cut to size on-site, and are therefore customizable to fit various shower sizes. The drain body is made of polypropylene and includes both PVC and ABS couplings for a simple connection to the drainpipe. KERDI-LINE-VARIO features a slim, 1-11/16” (43 mm) wide design and is offered in four grate designs to match with the latest trends in tile.

  • Grate and channel assembly offered in lengths of 4’ and 8’, and can easily be cut to size on-site
  • Slim design: only 1-11/16” (43 mm) wide
  • Suitable for wall-adjacent and center drain placement
  • End caps provided for trimmed edges, creating a clean, finished look

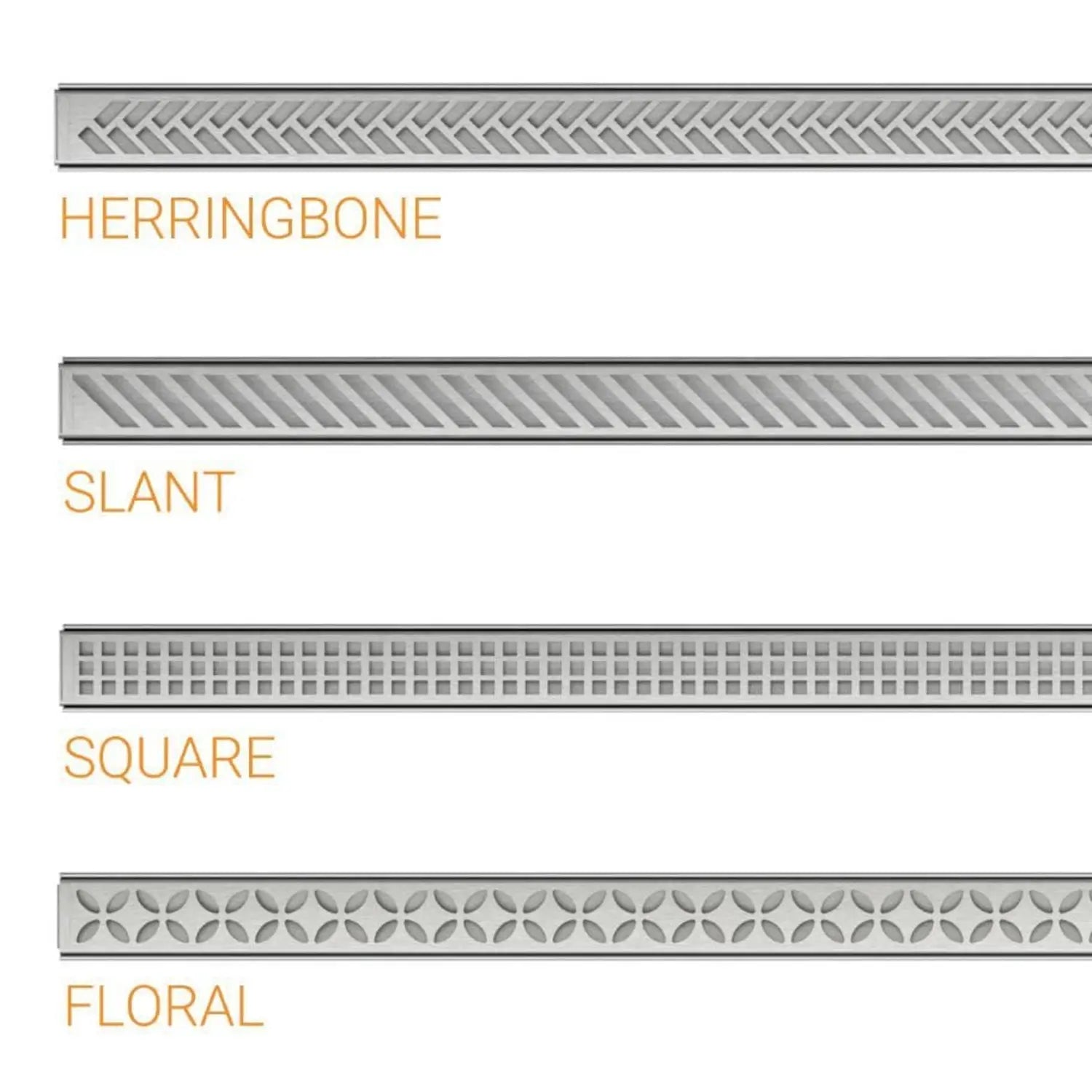

  • Four grate designs in brushed stainless steel: SQUARE, FLORAL, HERRINGBONE, and SLANT
  • Flange kit includes integrated KERDI collar for a secure, waterproof connection, as well as both PVC and ABS couplings
  • Flange can be placed wherever desired as per the position of the drainage outlet
  • Grate and channel kit, and flange kit must be purchased separately

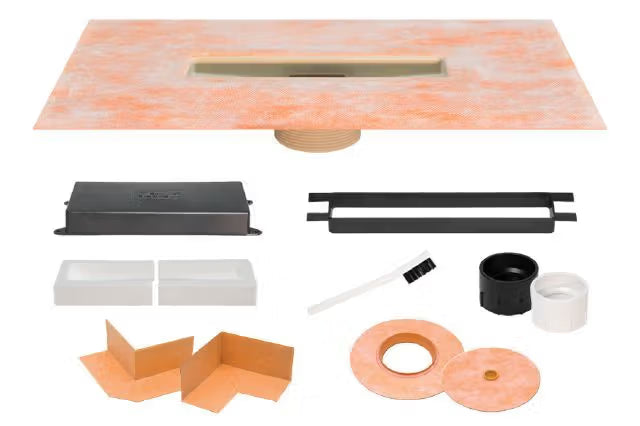

This kit includes

  • 1 polypropylene drain flange with bonded waterproof membrane and 2” NPT outlet
  • 1 downspout with double sided adhesive strips for placement and retention during installation
  • 1 construction cover
  • 1 ABS coupling adapter with 2” NPT (for use with ABS drainage infrastructure)
  • 1 PVC coupling adapter with 2” NPT (for use with PVC drainage infrastructure)
  • 2 flange support pieces
  • 4 inside waterproofing corners
  • 2 outside waterproofing corners
  • 1 pipe seal
  • 1 mixing valve seal
  • 1 cleaning brush


* Don’t forget! The 48” (122 cm) or 96” (244 cm) KERDI-LINE-VARIO grate and channel kit, available in multiple grate styles, must be selected separately.
