Schluter®-KERDI-LINE-VARIO Slant Grate & Channel body

Product Description :

Schluter®-KERDI-LINE-VARIO is a variable length linear drain for tiled showers. The brushed stainless steel channel and grate assembly can be cut to size on-site, and are therefore customizable to fit various shower sizes. The drain body is made of polypropylene and includes both PVC and ABS couplings for a simple connection to the drainpipe. KERDI-LINE-VARIO features a slim, 1-11/16” (43 mm) wide design and is offered in four grate designs to match with the latest trends in tile.

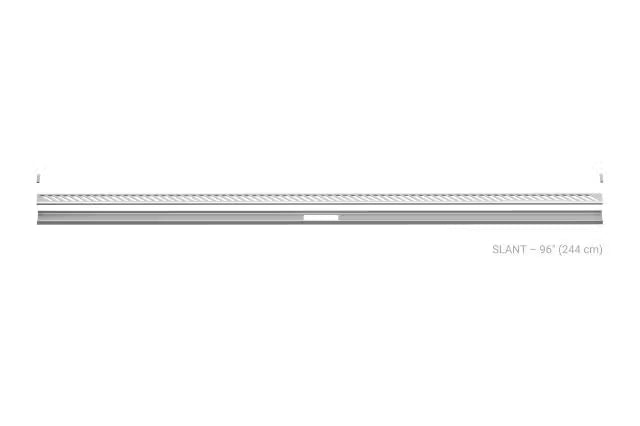

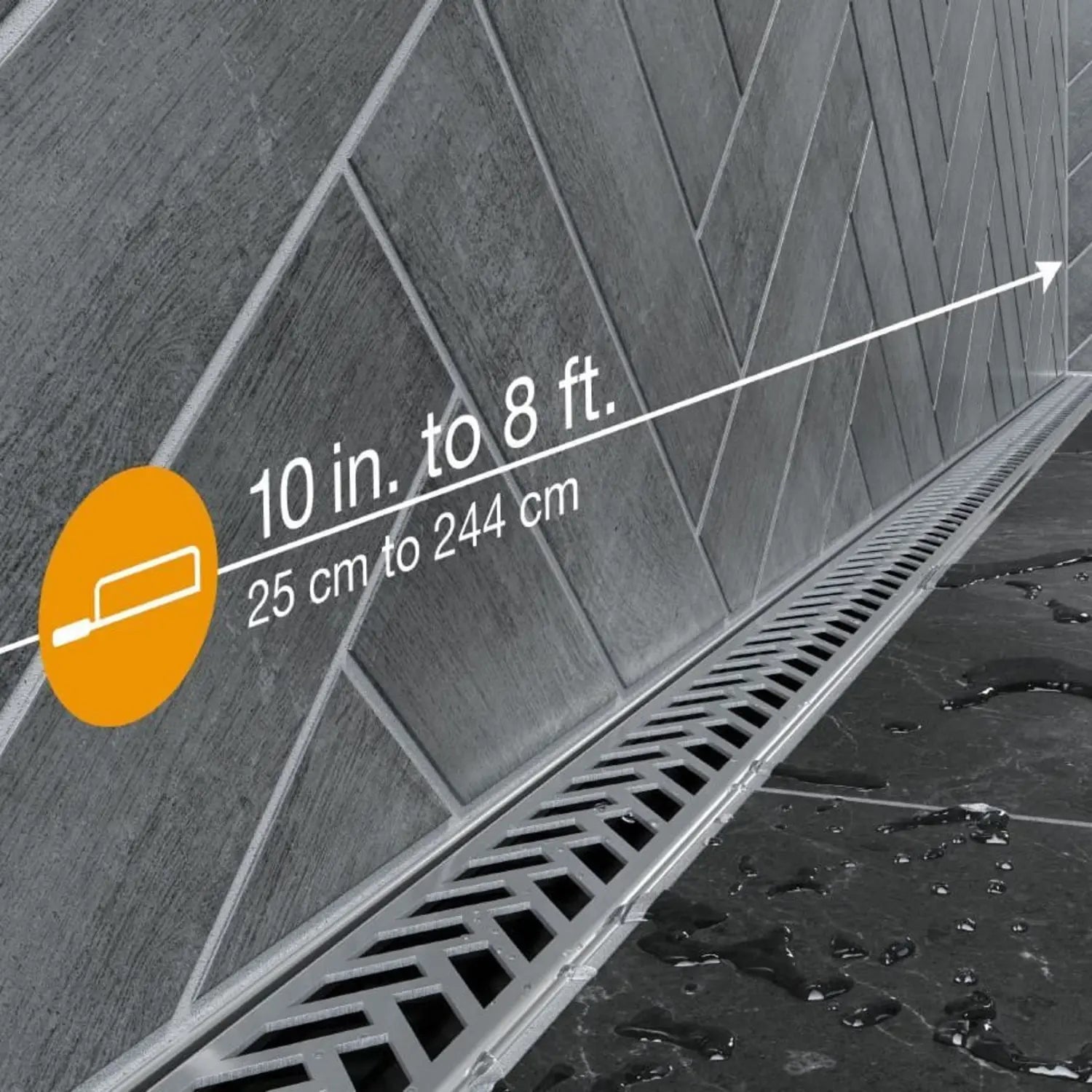

• Grate and channel assembly offered in lengths of 4’ and 8’, and can easily be cut to size on-site
• Slim design: only 1-11/16” (43 mm) wide
• Suitable for wall-adjacent and center drain placement
• End caps provided for trimmed edges, creating a clean, finished look

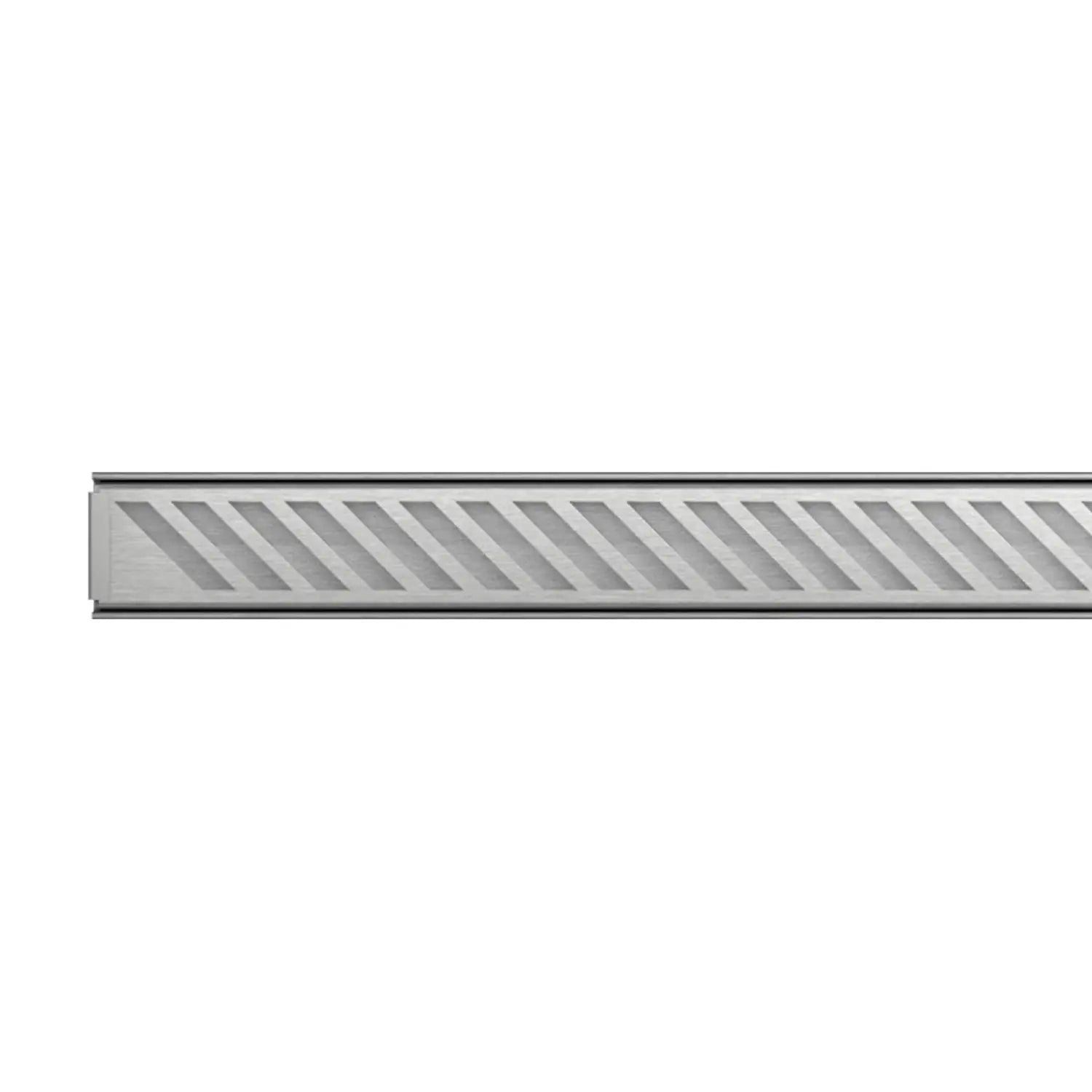

• Four grate designs in brushed stainless steel: SQUARE, FLORAL, HERRINGBONE, and SLANT

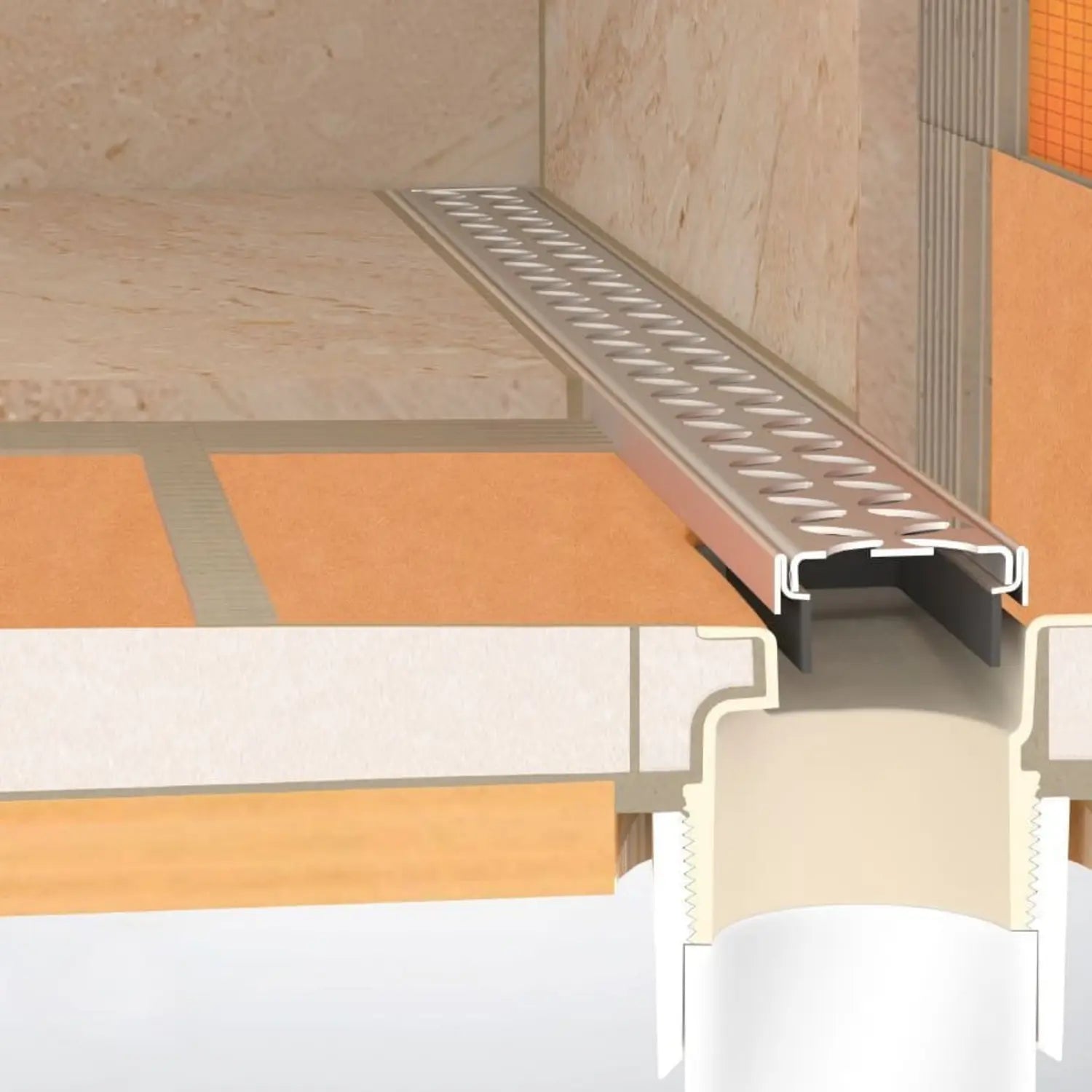

• Flange kit includes integrated KERDI collar for a secure, waterproof connection, as well as both PVC and ABS couplings
• Flange can be placed wherever desired as per the position of the drainage outlet
• Grate and channel kit, and flange kit must be purchased separately
