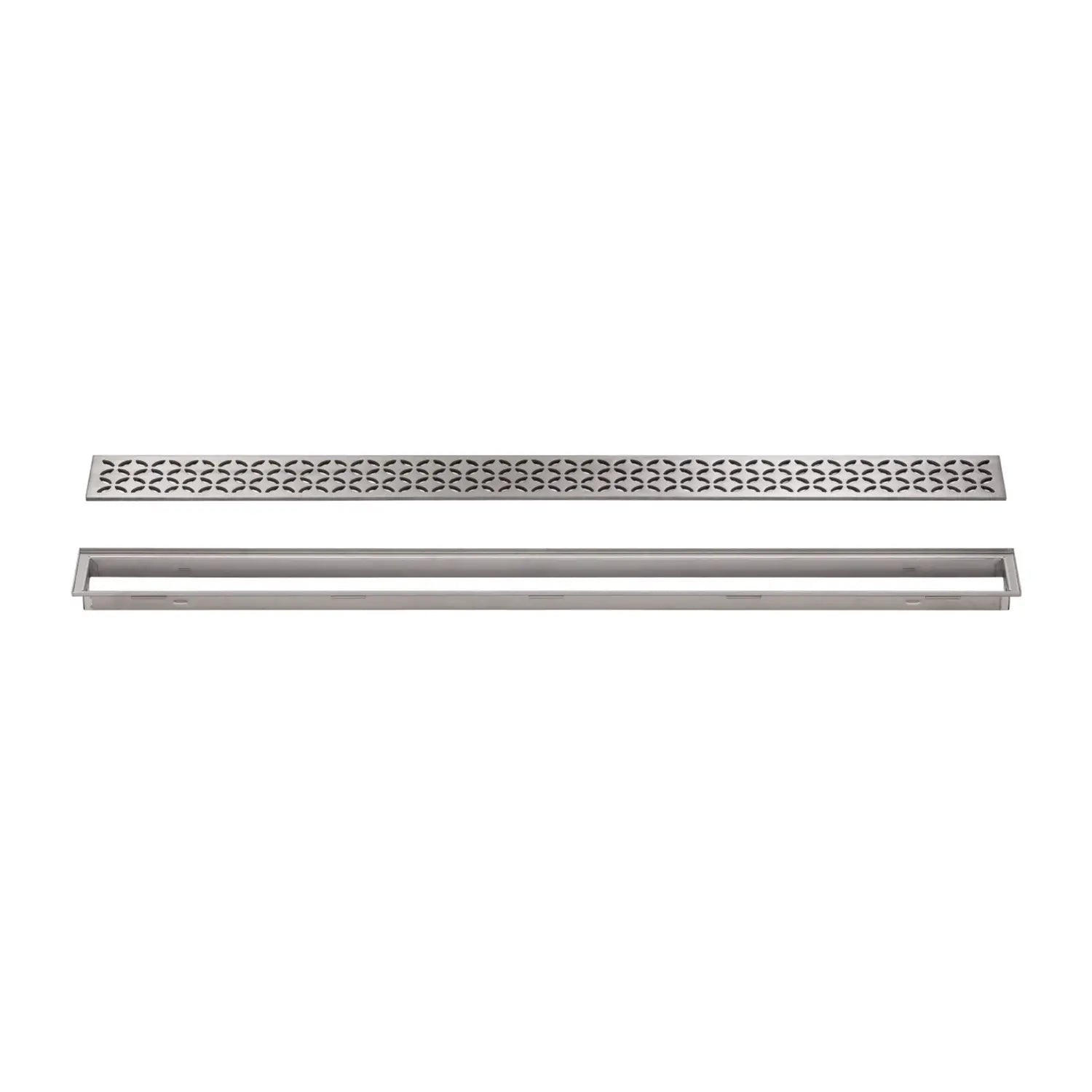

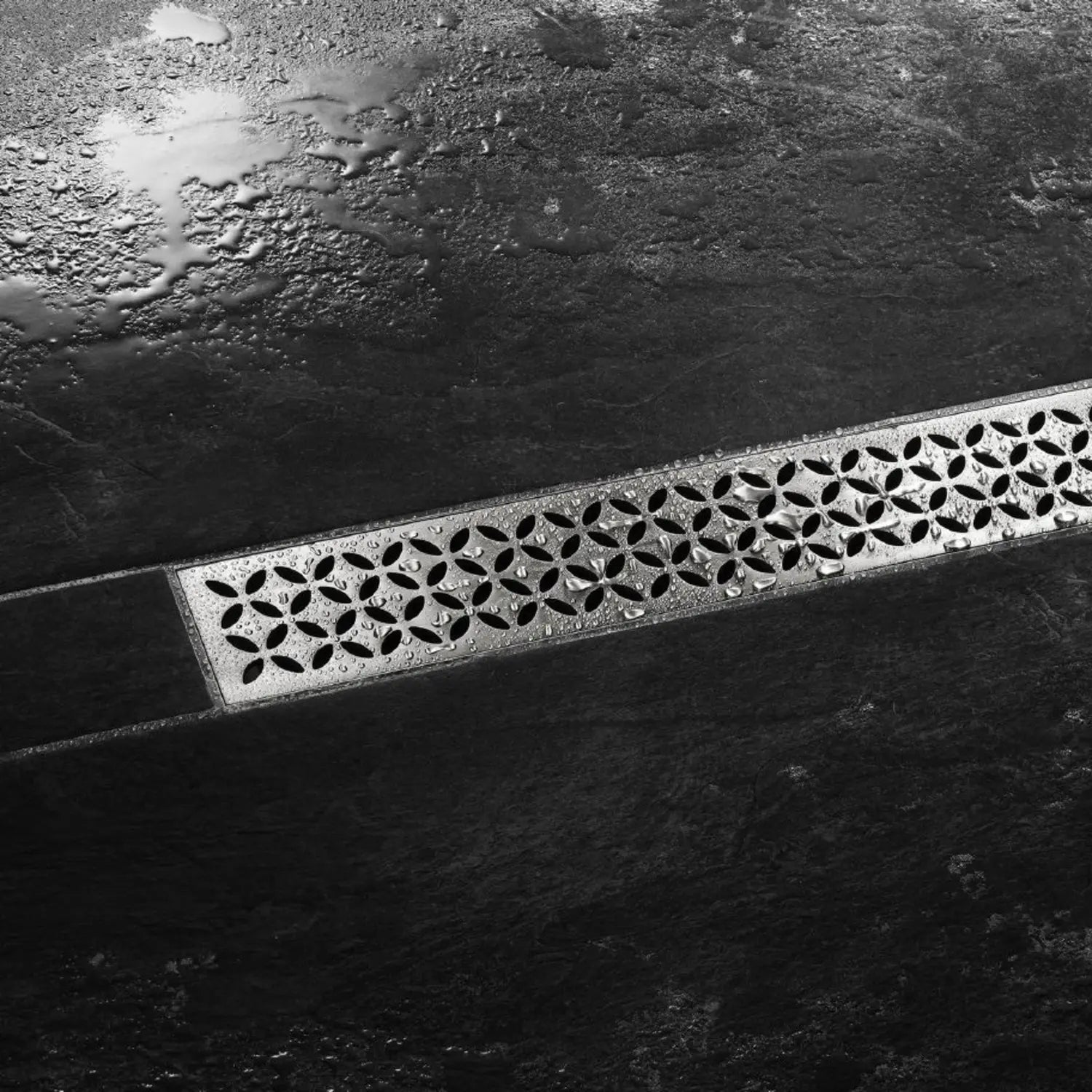

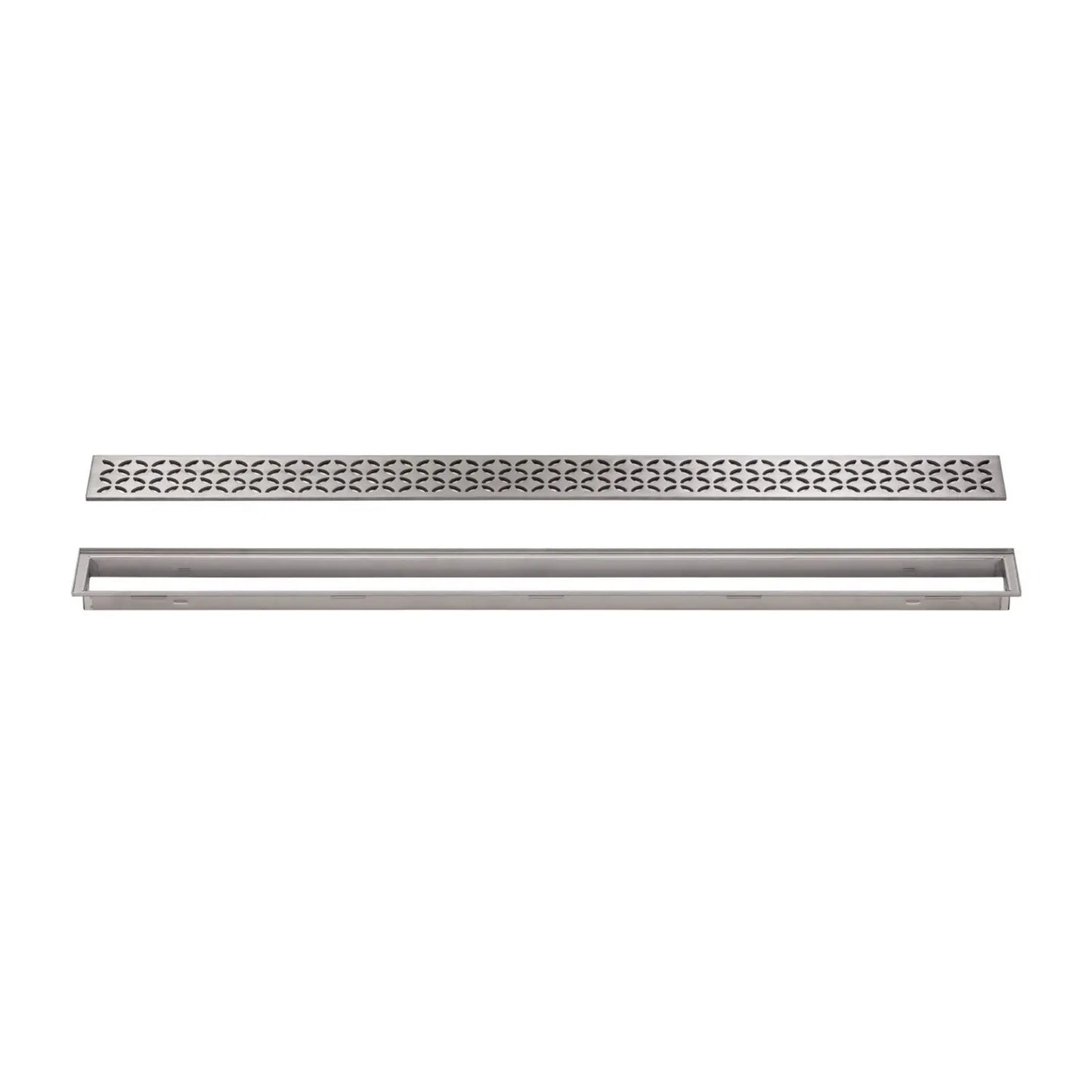

Schluter®-KERDI-LINE Frame with Floral Grate

The Schluter®-KERDI-LINE is a low profile linear floor drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

• Frame Height : 23 mm (29/32")
• New! KERDI-LINE-STYLE is available in three stylish options: Floral, Curve, and Pure
• Create curbless , open-concept spaces
• Floors can be sloped on a single plane to KERDI-LINE, enabling the use of large-format tiles
• Channel body is made of formed stainless steel and features a KERDI collar to create a secure waterproof connection
• Off-set and center outlets available
• Accommodates all common thicknesses of ceramic tiles and stone coverings
• Available in lengths ranging from 20” (50 cm) to 72”(180 cm)
• Grate assemblies sold separately and available in six designs
• Solid and perforated grates can be used with the KERDI-LINE-FC to create a seamless look in applications where multiple drains are installed end-to-end

Specifications
